Parts for Naomoto/Hi-Steam #HYS-5 & #HYS-6 Gravity Feed Iron

Description

Product Description

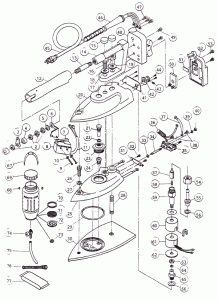

Click on diagram below to make full-page.

BUSINESS-TO-BUSINESS SALES ONLY.
PRICES SUBJECT TO REVIEW.

	01 Plastic Cap SKU: 03C400 $2.95 In stock
	02 Nut for Microswitch Fixing Plate (03C401) SKU: 2019601 $4.10 In stock
	03 Hook SKU: 03C401B $2.95 In stock
	04 Spacer SKU: 03C401C $3.80 In stock
	05 Spring Washer SKU: 03C401D $2.75 In stock
	06 Microswitch Fixing Plate (03C402) SKU: 2010403 $71.45 In stock
	07 DISCONTINUED (Microswitch #03C406) SKU: 2010401 In stock
	08-09-10 Microswitch Cover w/screw & washer SKU: 2010402 $13.80 In stock
	11 Lead Wire for Microswitch (03C406L) SKU: 2010404 $17.85 In stock
	12 Wooden Handle (03C403) SKU: 2010101 $78.70 In stock
	13 Handle Bolt (03C407) SKU: 2019402 $16.85 In stock
	14 Casting Bracket (03C408) SKU: 2010602 $115.65 In stock
	15 DISCONTINUED (Silicone Protector) SKU: 03C414 In stock
	16 & 19 Bolt & Washer (03C411B) for Casting Bracket SKU: 2019502 $3.85 In stock
	17-18 Nut & Washer for Casting Bracket SKU: 2019603 $3.85 In stock
	20 Iron Cover (03C413) SKU: 2010801 $73.95 In stock
	21 DISCONTINUED (Induction Bolt) SKU: 03C415 In stock
	22 DISCONTINUED (Induction Bolt Washer) SKU: 03C415W In stock
	23 DISCONTINUED (Plug for Steam Chamber) SKU: 03C416 In stock
	24 Induction Joint (03C448; 03C415J) SKU: 2013050 $48.65 In stock
	25 DISCONTINUED (Steam Chamber, 110 volt) (03C417) SKU: 2013002 In stock
	25 Steam Chamber Assembly w/Heater, 220 volt (03C417V) SKU: 2013003 $312.20 In stock
	26 Front Screw (03C412) SKU: 2019503 $5.50 In stock
	27 Washer (03C412W) SKU: 2019815 $1.50 In stock
	28 Stud Bolt (03C422) SKU: 2019404 $7.30 In stock
	29 DISCONTINUED (Gasket Packing) (03C419) SKU: 2011401 In stock
	30 Sole Plate HYS-5 (03C421) SKU: 2016001 $201.40 In stock
	30 Sole Plate HYS-6 (03C420) SKU: 2016002 $201.40 In stock
	31 Thermostat Fixing Plate SKU: 03C423 $8.95 In stock
	32 Fixing Plate Screw SKU: 03C424 $1.25 In stock
	33 DISCONTINUED Washer (03C429W) SKU: 03C425 In stock
	34 DISCONTINUED Thermostat Stopper SKU: 03C429 In stock
	35 Thermostat with Thermal Fuse SKU: 03C426 $84.95 In stock
	36 Thermal Fuse (2012002; 03C426F) SKU: 2012004 $33.50 In stock
	37 DISCONTINUED (Lead Wire for Thermostat) SKU: 03C427 In stock
	38 DISCONTINUED Screw for Thermostat SKU: 03C428 In stock
	39 DISCONTINUED Washer for Thermostat Stopper (03C429W) SKU: 03C425 In stock
	40 DISCONTINUED Nut for Thermostat Stopper SKU: 03C430 In stock
	41 DISCONTINUED (Name Plate) SKU: 03C418 In stock
	42-43 Screw & Thermostat Knob SKU: 2011851 $9.45 In stock
	44 DISCONTINUED Name Plate Screw SKU: 03C418A In stock
	45 Wire Cord (03C464) SKU: 2011612 $121.25 In stock
	46 Cord Supporter (03C436) SKU: 2011701 $13.95 In stock
	47 Screw (03C464S) SKU: 2019762 $1.65 In stock
	48 Switch Body (03C433) SKU: 2011902 $67.15 In stock
	49 Switch Body Screw, Long (03C433S) SKU: 2019719 $1.25 In stock
	49 Switch Body Screw, Short (03C433S) SKU: 2019718 $1.25 In stock
	50 DISCONTINUED (Lamp Holder, 110 volt) SKU: 03C434H In stock
	50 Lamp Holder, 220 volt (03C434HV) SKU: 2011906 $26.95 In stock
	51 Lens (03C434L) SKU: 2011916 $2.50 In stock
	52 DISCONTINUED (Switch Cover (03C434)) SKU: 2011911 In stock
	53 Screw (03C435) SKU: 2019726 $7.75 In stock
	54 – 63 Solenoid Valve Complete, 110 volt (SV5) SKU: 2012564 $225.95 In stock
	54 – 63 Solenoid Valve Complete, 220 volt (SV5V) SKU: 2012511 $244.15 In stock
	54 Valve Nut (03C437) SKU: 2012535 $23.25 In stock
	55 Hose Nipple (03C438) SKU: 2012534 $29.60 In stock
	56 Packing (03C439/X000374) SKU: 2019905 $2.90 In stock
	57 Plunger (03C440) SKU: 2012533 $47.70 In stock
	58 Plunger Spring (03C441) SKU: 2012532 $6.70 In stock
	59 Valve Pipe (03C442) SKU: 2012531 $53.95 In stock
	61 Coil, 110 volt (03C444A) SKU: 2012559 $155.35 In stock
	61 Coil, 220 volt (03C444AV) SKU: 2012560 $132.35 In stock
	62 DISCONTINUED (Steel Seat) (03C466) SKU: 2012528 In stock
	63 Solenoid Nut (03C445) SKU: 2019609 $5.80 In stock
	64 Valve Pipe Packing (03C447) SKU: 2019901 $1.65 In stock
	65 Valve Seat (03C448; 03C415J) SKU: 2013050 $48.65 In stock
	66 Valve Packing (03C449) SKU: 2013051 $2.55 In stock
	67 – 74 Water Tank Complete (03C465; 2019101) SKU: 2019102 $145.90 In stock
	74 Water Tank Cock Valve (03C460) SKU: 2019131 $84.90 In stock
	75 Silicone Water Hose (1.5m) (03C462) SKU: 2019133 $80.15 In stock
	77 Demineralizer, Naomoto SKU: 03C463 $39.85 In stock
