Face Plate, Arm Top Cover Parts & Components

Product Description

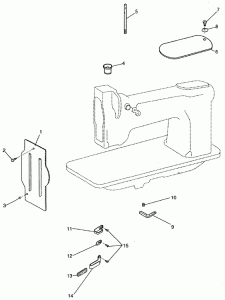

Parts & prices are listed below the diagram.

(Click on diagram below to make it full-page.)

To open and print your own copy of the full parts book for the 226R, CLICK HERE.

NOTE: WE MAY NOT BE ABLE TO HONOR PRICES ADVERTISED. WE WILL CONTACT YOU IF NOT.

	01 FACE PLATE (10698) SKU: 240104 $9.25 In stock
	02 FACE PLATE THUMB SCREW (10699) SKU: 200473 $1.80 In stock
	03 FACE PLATE SET PIN SKU: 10700. $2.75 In stock
	04 RUBBER SKU: 10701-A $5.70 In stock
	05 THREAD GUIDE SPOOL PIN (10709) SKU: 224028 $4.60 In stock
	06 ARM CAP (top cover) (10702) SKU: 224002 $14.50 In stock
	07 Hinge Screw 3/16X28 SKU: 10704 $2.70 In stock
	08 ARM CAP SCREW WASHER (10703) SKU: 202248 $1.60 In stock
	09 THREAD GUIDE, 3-hole (10680) SKU: 240034 $1.70 In stock
	10 Screw 3.4X36 L=6.5 SKU: 10681 $0.95 In stock
	11 THREAD GUIDE, UPPER (10682) SKU: 210955 $3.60 In stock
	12 THREAD GUIDE, MIDDLE (10683) SKU: 210954 $3.35 In stock
	13 THREAD GUIDE FELT SKU: 10760 $0.95 In stock
	14 THREAD GUIDE, LOWER (10759-A) SKU: 10759 $5.60 In stock
	15 THREAD GUIDE SCREW SKU: 10685 $2.95 In stock
